泥水平衡巖石頂管掘進機 (Φ600 - Φ3500)
Slurry Pipe Jacking Machine Series For Rock Condition
泥水平衡巖石頂管機應用于市政管道（污水管、供水管、供電電纜管、通信電纜管、天然氣管等）的建設，管材通常為砼管、鋼管，可以適應在含有卵石、礫石、巖石等復雜地質條件下施工，適用直線或曲線頂進距離100m-1000m。采用泥水平衡方式完成巖石破碎、推進、連續排渣等作業，完成管道安全、高效、高質量非開挖鋪設，可以較好地控制地面沉降。

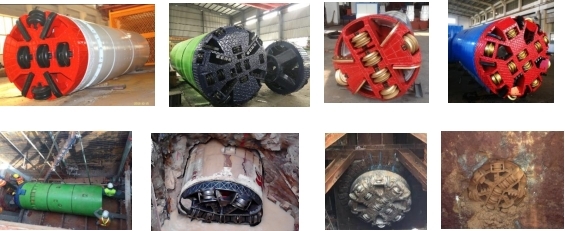

Slurry pipe jacking machinefor rock conditionis applied to the construction of municipal pipelines (sewage, water supply, power cable pipes, communication cable pipes, natural gas pipes, etc.). Usuallyforconcrete pipes or steel pipes, suitable for complex geological conditions such as pebbles, gravel, and rocks, straight-line or curved jacking distances of 100m-1000m. The use of slurry balance method to completerock fragmentation,propulsion, continuousslag discharge and other operations, can achieve safe, efficient, and high-qualitytrenchless laying of pipelines, and effectively control ground settlement. 圖三四機身白色
|
Pipe ID (mm) |
Machine DimensionOD*L(mm) |
Cutterhead Power (kW*set) |
Torque (kN·m) |
Revolution (r/min) |
Steering Jack (kN*st*set) |
Hydraulic Unit (kW) |
Slurry Line Diam. (mm) |
Shaft Dimension (mm) |
Power Source (Hz/V) |
|
Φ600 |
780 x 3500 |
18.5 x 1 |
35 |
0-7 |
294 x 30 x 4 |
1.1 |
80 |
5000x3000 |
50/400 |
|
Φ800 |
1020 x 4000 |
37 x 1 |
69 |
0-7 |
343 x 35 x 4 |
1.1 |
100 |
5000x3000 |
50/400 |
|
Φ900 |
1100 x 4000 |
37 x 1 |
69 |
0-7 |
490 x 40 x 4 |
1.5 |
100 |
5000x3000 |
50/400 |
|
Φ1000 |
1220 x 4000 |
45 x 1 |
107 |
0-6 |
490 x 40 x 4 |
1.5 |
100 |
5000x4000 |
50/400 |
|
Φ1200 |
1500 x 4500 |
30 x 3 |
215 |
0-5 |
784 x 45 x 4 |
2.2 |
100 |
5000x4000 |
50/400 |
|
Φ1350 |
1640 x 4500 |
45 x 3 |
322 |
0-5 |
980 x 50 x 4 |
2.2 |
100 |
7000x4000 |
50/400 |
|
Φ1500 |
1810 x 4600 |
55 x 3 |
394 |
0-5 |
980 x 55 x 4 |
3 |
150 |
7000x4000 |
50/400 |
|
Φ1650 |
1950 x 4600 |
55 x 3 |
394 |
0-5 |
980 x 60 x 4 |
3 |
150 |
7000x4000 |
50/400 |
|
Φ1800 |
2190 x 5200 |
55 x 4 |
600 |
0-5 |
784 x 70 x 8 |
5.5 |
150 |
7500x4000 |
50/400 |
|
Φ2000 |
2440 x 5500 |
55 x 4 |
600 |
0-5 |
784 x 80 x 8 |
5.5 |
150 |
7500x4000 |
50/400 |
|
Φ2100 |
2540 x 6000 |
55 x 4 |
600 |
0-5 |
980 x 80 x 8 |
5.5 |
150 |
8000x4000 |
50/400 |
|
Φ2200 |
2610 x 6000 |
55 x 5 |
750 |
0-5 |
980 x 90 x 8 |
5.5 |
150 |
8000x4000 |
50/400 |
|
Φ2400 |
2910 x 6500 |
55 x 5 |
750 |
0-5 |
1176 x 100 x 8 |
5.5 |
150 |
8500x5000 |
50/400 |
|
Φ2500 |
2980 x 6500 |
55 x 5 |
572 |
0-5 |
1176 x 100 x 8 |
5.5 |
150 |
8500x5000 |
50/400 |
|
Φ2600 |
3070 x 6500 |
55 x 6 |
900 |
0-5 |
1176 x 100 x 8 |
5.5 |
150 |
8500x5500 |
50/400 |
|
Φ2800 |
3340 x 6500 |
55 x 6 |
900 |
0-5 |
1470 x 110 x 8 |
7.5 |
150 |
8500x5500 |
50/400 |
|
Φ3000 |
3530 x 7000 |
75 x 6 |
1432 |
0-4 |
1470 x 120 x 8 |
7.5 |
150 |
9000x6000 |
50/400 |
|
Φ3500 |
4170 x 7000 |
75 x 6 |
1432 |
0-4 |
1470 x 120 x 8 |
7.5 |
150 |
9000x6000 |
50/400 |
注：以上參數可根據用戶需求適當調整。
Note: Above parameters can be adjusted based on clients needs.
